Fittings and tubing design ensures easy installation and re-usability of components. Easy to use; just cut the tubing to length and insert it into the fittings. Remove by pushing in on the collet and pulling the tubing out.

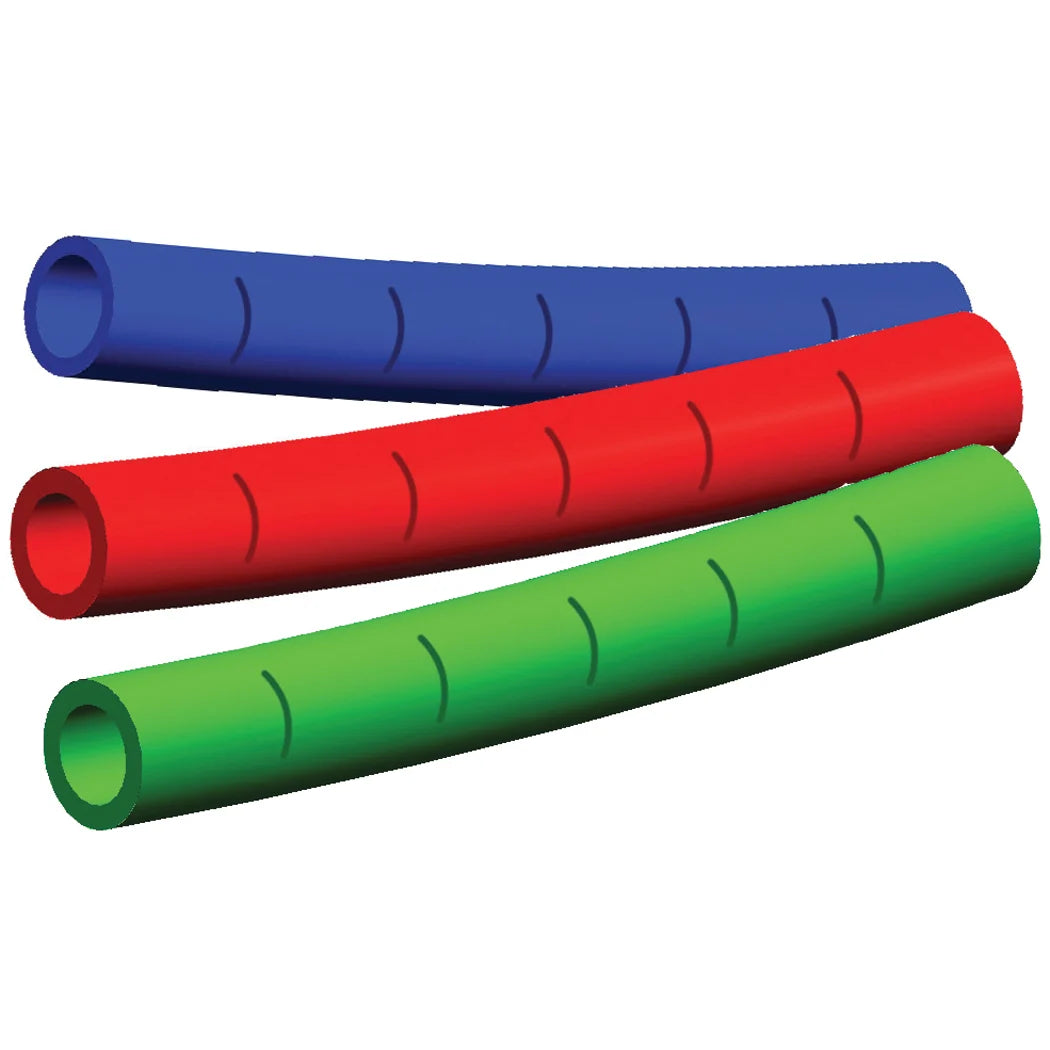

• Whale's semi-rigid polyethylene tubing offers the integrity of metal tubing with the usability of plastic • Unique “Double Gripper” design provides secure lifelong tube retention, even at excessive pressures • No collet clips are necessary, thus the Whale system reduces costs and installation time • The innovative, tube supporting, “cage collet” design eliminates leaks where fittings are close to tight bends • Outer sleeve incorporates collet cover, thus preventing accidental tube release • Minimum recommended tubing bend radius is 7"; minimum bend is 5 times outside diameter of tubing (approx. 41/2" for 15mm tubing) • System is rated at 180 PSI at 68°F and 90 PSI at 150°F
