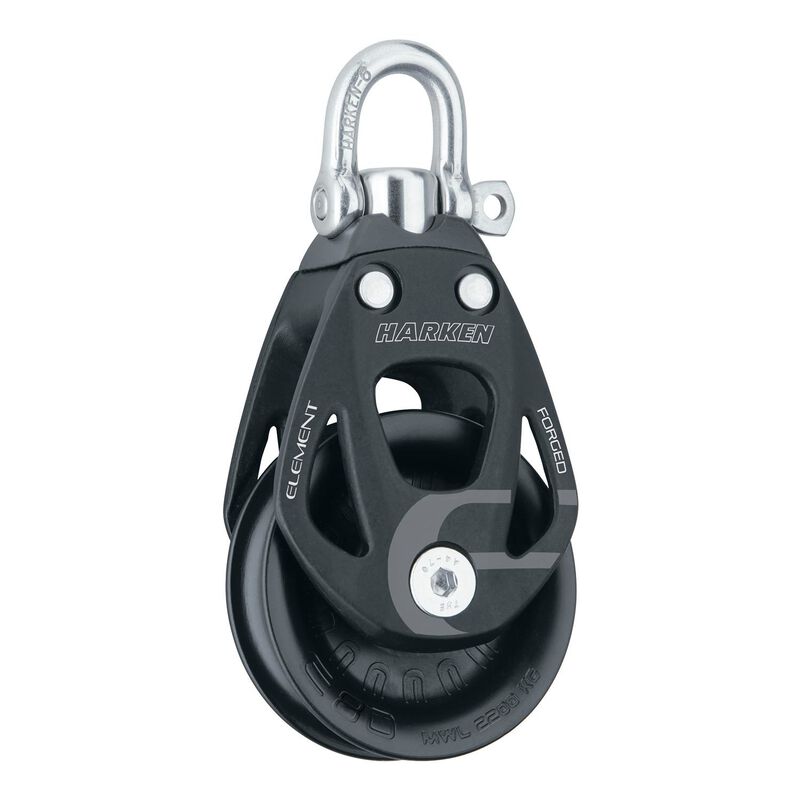

Harken, 80 mm Element Single Block with Swivel/Locking Shackle
Regular price
$107.99
HARKEN Element Single Block with Swivel/Locking Shackle, 80 mm
Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element's design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing.
Key Features
- Robust Sideplates: Element blocks feature sideplates made from forged aluminum with compound curves, offering contemporary design and exceptional strength
- Minimal Metal Usage: Designed to use the minimum amount of metal necessary to protect the sheave for efficiency
- Proven Journal Bearing: Incorporates a proven journal bearing for reliable performance
- Corrosion Resistance: Sideplates are hardcoat-anodized to resist corrosion, enhancing durability
- Long Service Life: The tough composite bearing sheave resists corrosion, ensuring a long service life
| Specifications | |
|---|---|
| Sheave | 80 mm / 3 1/8" |
| Length | 171 mm / 6 3/4" |
| Weight | 475 g / 16.6 oz. |
| Shackle Pin | 10 mm / 3/8" |
| Maximum Line | 16 mm / 5/8" |
| Maximum Working Load | 2200 kg / 4850 lb. |
| Breaking Load | 4400 kg / 9700 lb. |
