PKL Push Knob , Chrome

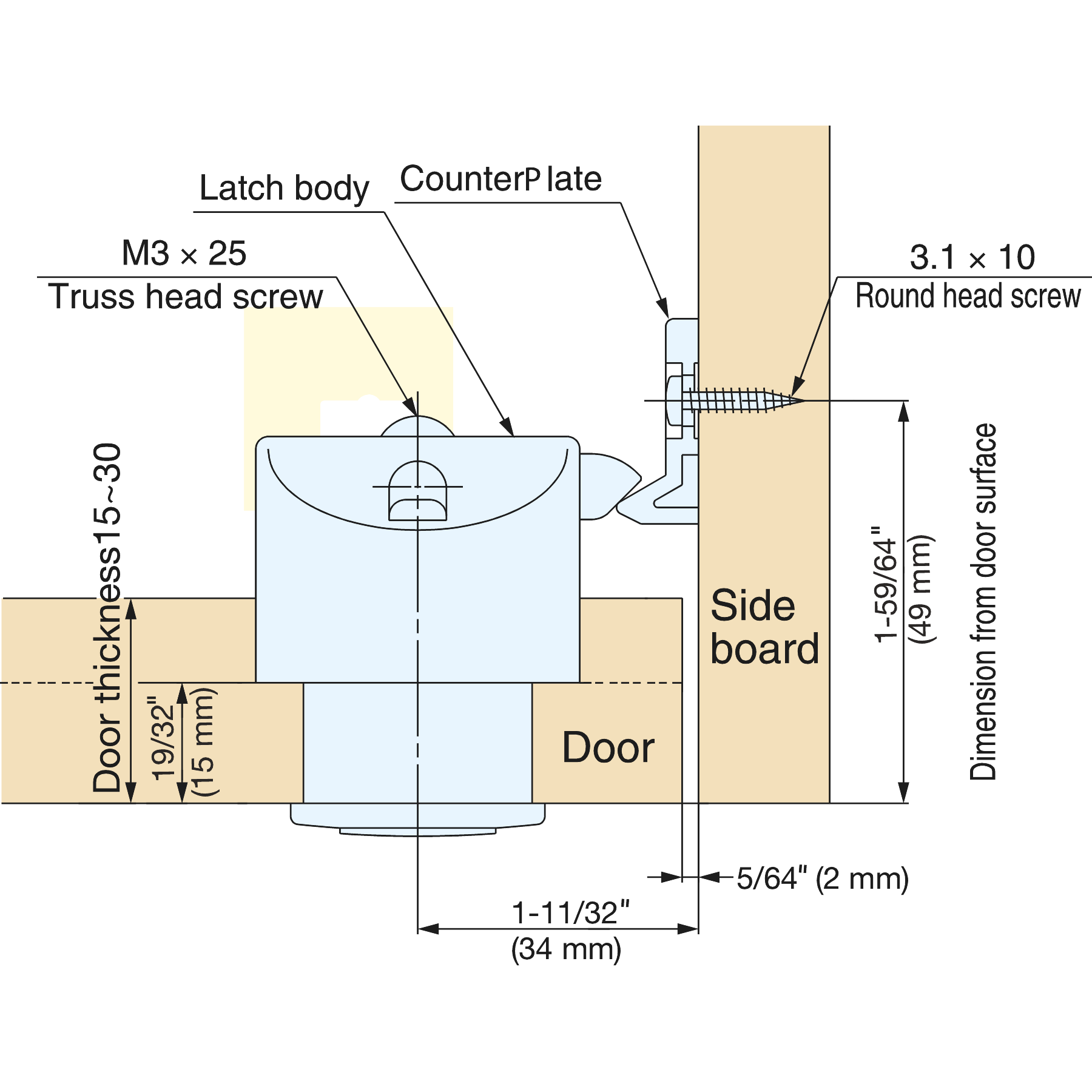

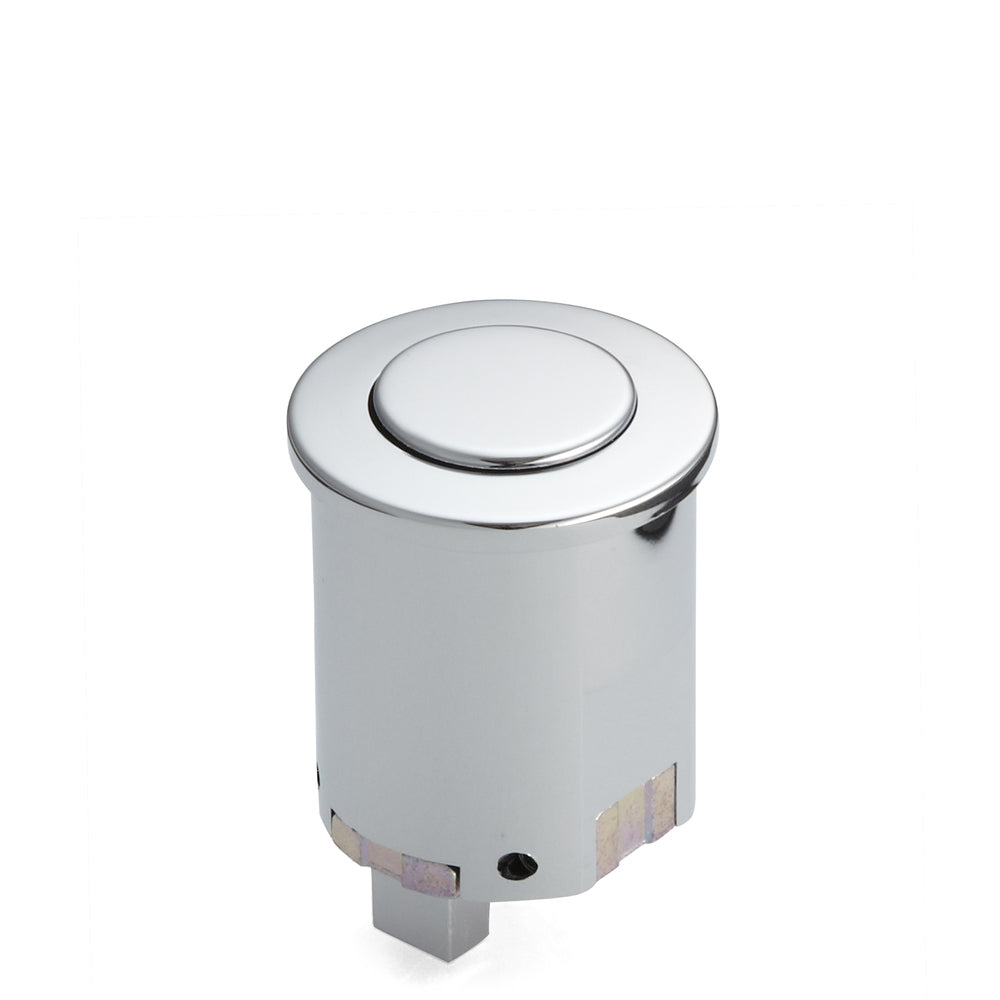

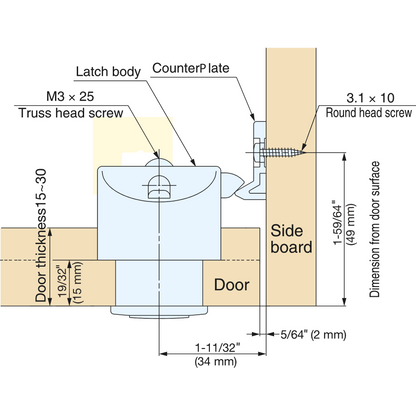

When the door is closed, the latch is engaged. Push the knob to flush position to lock the latch. Push the knob again, to out position, to unlock the latch. The push knob assures safety and has a sleek-looking appearance. The plastic base sits (Sold Separately) on the rear surface of the door or, for thicker doors, can be mortised/counterbored into the rear surface. The neck portion is inset into the door, up to the thin flange, so the mechanism is only 4mm proud on the door surface - just over 1/8" with the knob in the recessed position. Counterplate/strike plate mounts on side wall of cabinet.

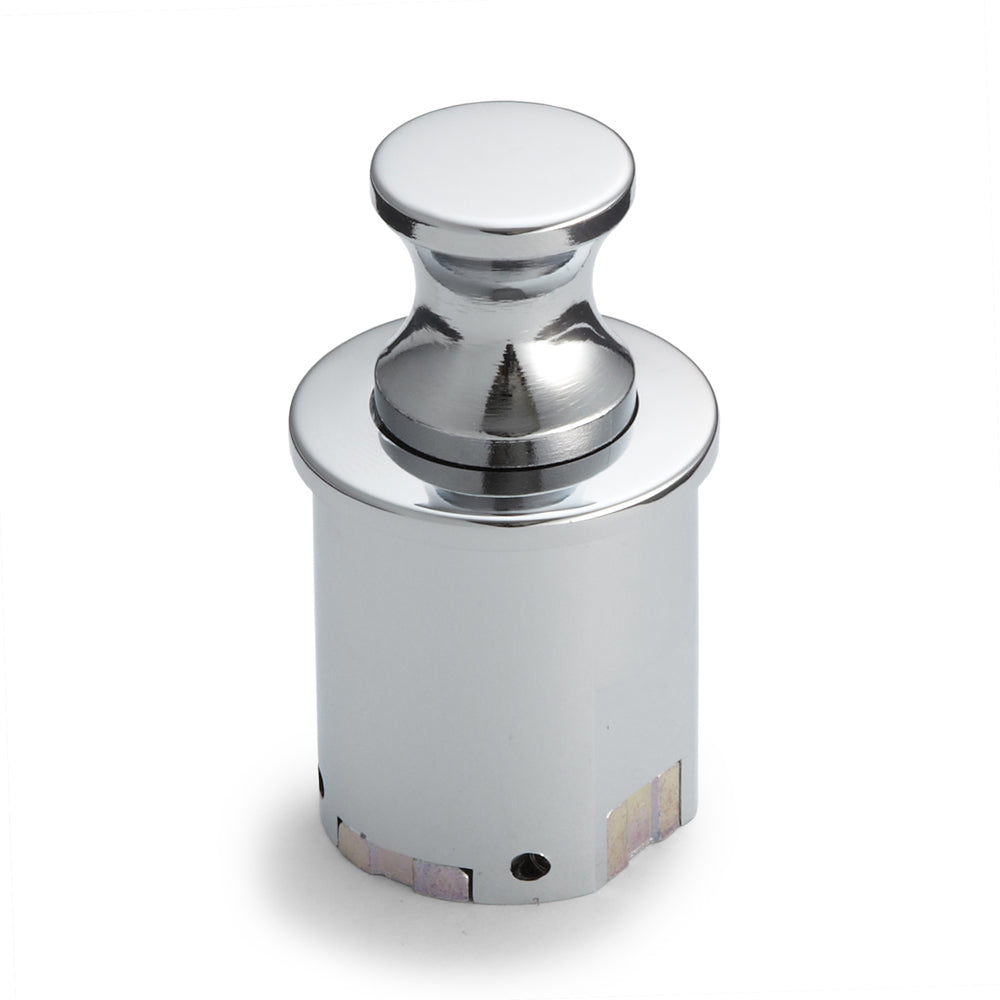

• Knob protrudes a total of 19mm (3/4") when released
• Door thickness from 15 - 30mm (5/8" to 1-13/16"); door up to 15mm (5/8") thick with no counterbore required
• Holding force: 22 lbs
• Zinc alloy, ABS plastic
• Push knob and latch body sold separately; see Related Products, below, for the latch body

Note: This is only the push button knob.  Since the knob is more subject to corrosion or breakage these are sold seperately.  If you want to install a completely new latch you will also need part PKL Push Button Latch Body Only - White
