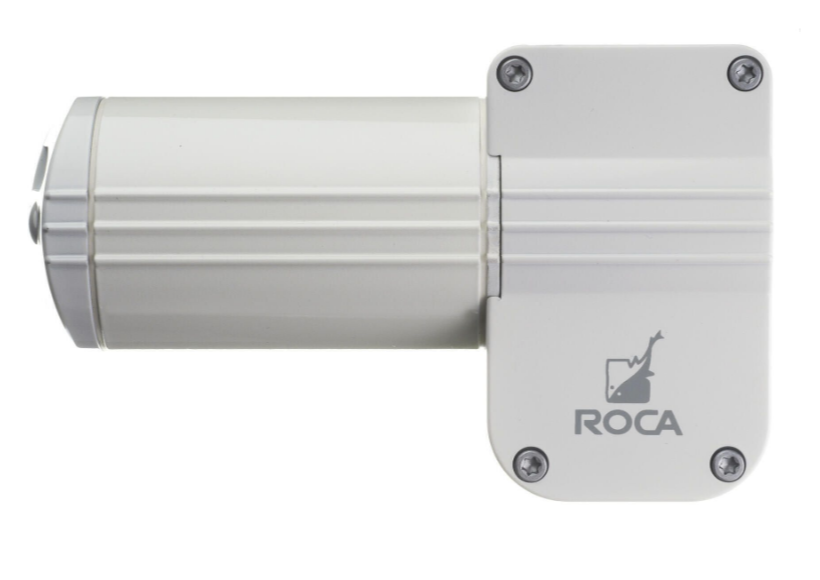

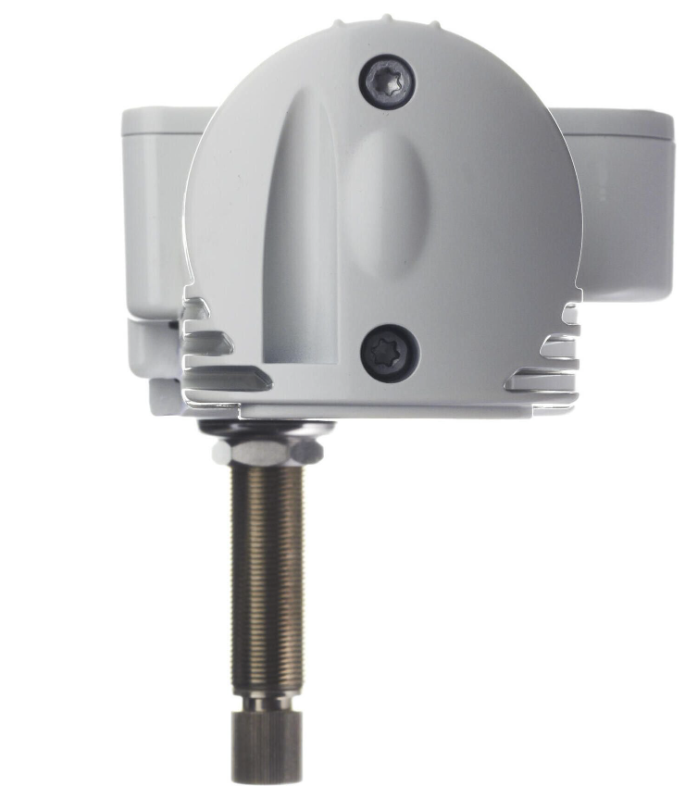

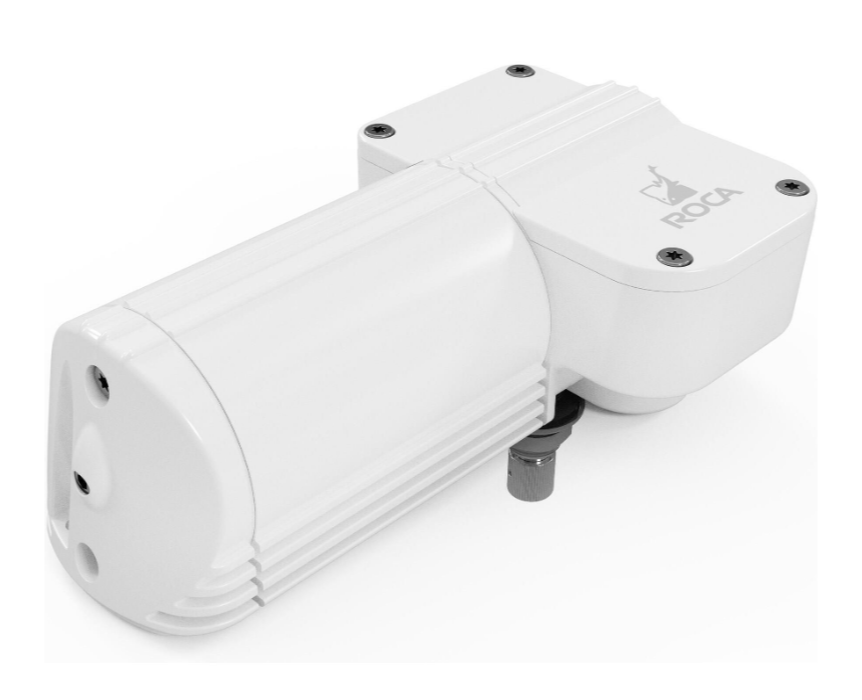

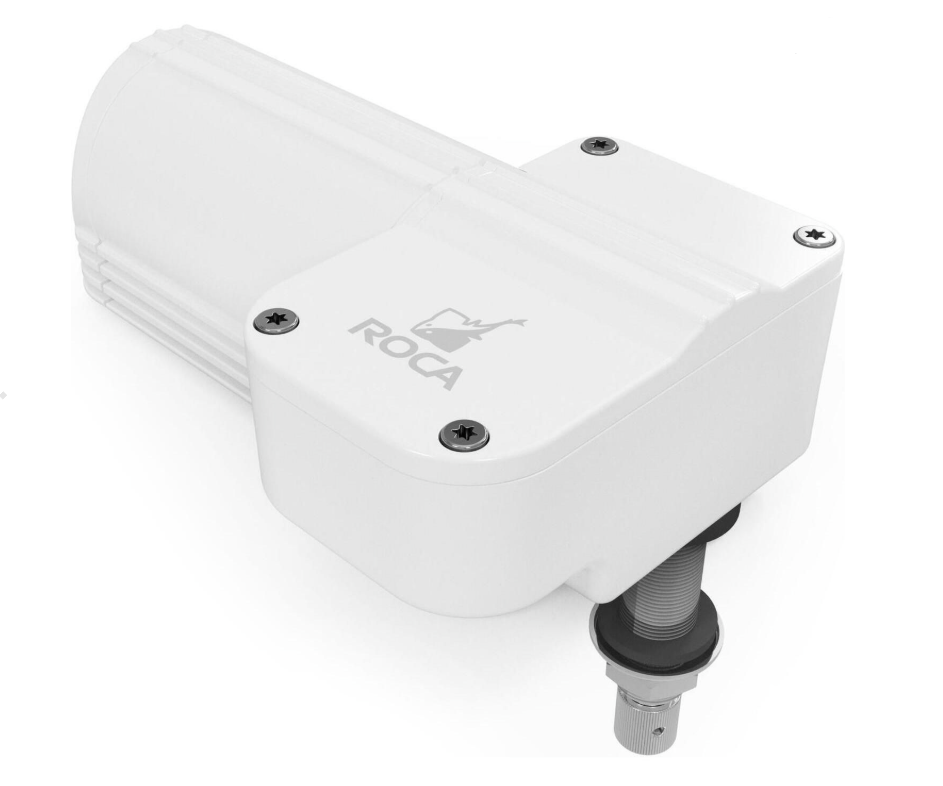

Roca W12-Series Windshield Wiper Motor

Roca's W12 Wiper Systems feature a powerful motor that provides a robust upgrade to the waterproof and standard motor. Features on this new water-resistant motor include integrated heat sinks and adjustable sweep angles. Choose from standard or heavy-duty blades and arms to complete your system.

Features:

• Powerful 2-speed wiper motor drives pendulum and pantograph wiper arms up to 24", with wiper blades up to 22"
• Spray proof, water-resistant housing
• Self-parking, changeable to port or starboard
• Easily adjustable sweep angle 45° to 110° (stepless)
• Integrated heat sinks for proper and efficient heat management
• Insulated ground for metal, fiberglass and wooden boats

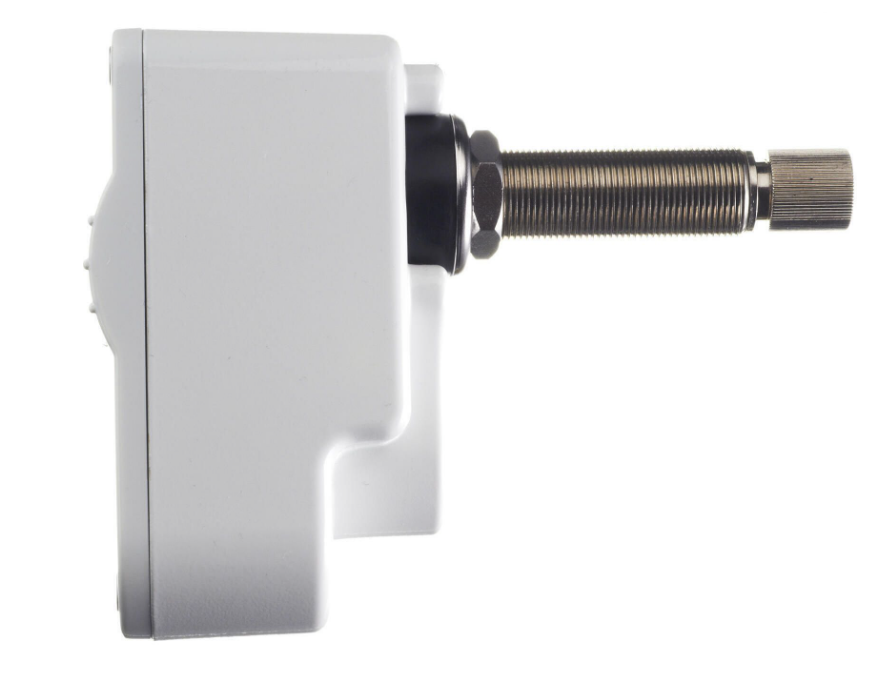

• Stainless steel driveshaft

Specifications:

• Wiper Arm / Blade Combination: Up to 24" (610 mm) arm / up to 22" (560 mm) blade
• Adjustable Sweep Angle: 45° - 110° (motor is pre-set to 45° sweep / starboard parking position)
• Sweeps per Minute: 35 (low) / 55 (high)
• Mount: Bulkhead
• Torque: 12 Nm
• Ingress Protection: IP 65 (protected against jets of water from all directions)
• Regulatory: CE approved; EMC protected
• Max Bulkhead Thickness
  • 1.65" (42 mm) Driveshaft Length: 0.63" (16 mm)
  • 2.68" (68 mm) Driveshaft Length: 1.65" (42 mm)
  • 3.70" (94 mm) Driveshaft Length: 2.68" (68 mm)
• 12V models
  • Rated Amp Draw: 4A
  • Fuse: 5A
• 24V models
  • Rated Amp Draw: 2A
  • Fuse: 3A
